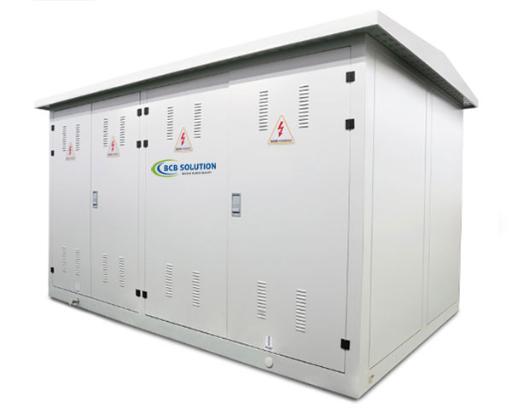

In accordance with IEC 62271 Standard, the prefabricated steel enclosure housed – HT Switchgear, Transformer and LT Switchgear are associated equipment to form a composite compartmentalized UNITISED SUB-STATION with concern to safety and meet the Urban and Industrial needs. The Substation is designed to take care of moisture, dirt, condensation in coastal areas and is completely lockable to protect against unauthorized access.
SPACIFICATIONS
Technical Specifications
| Range | 315KVA to 2500KVA |
| Voltage Class | Up to 33KV Class |
| Insulation Medium | Vacuum or SF6 Gas |
| Cooling | AN/AF |
| Type | Oil Immersed / Dry Type |
| No. of Phase | 3 Phase |
| Applicable Standards | IS 62271 |
Key Highlights / Features
- Ready for installation and commissioning
- Superior aesthetics
- Easy for transportation
- In accordance with IEC 62271
- Operating ease
- Minimal moving parts and maintenance
- Wide range of factory-designed options
- Meets IP23D degree of protection as per IEC 62271
- Suitable for adverse temperatures and weather
- Factory build and ready for network connection
- All compartments are provided with illumination
- Can be installed on rooftop or basement with cross ventilation
Uses and Applications
Commercial Buildings | Housing Colonies | Shopping malls | IT Industries | Mobile Substations | Wind Energy Plants | Utilities | Gas Stations
