Oil-Filled Transformer

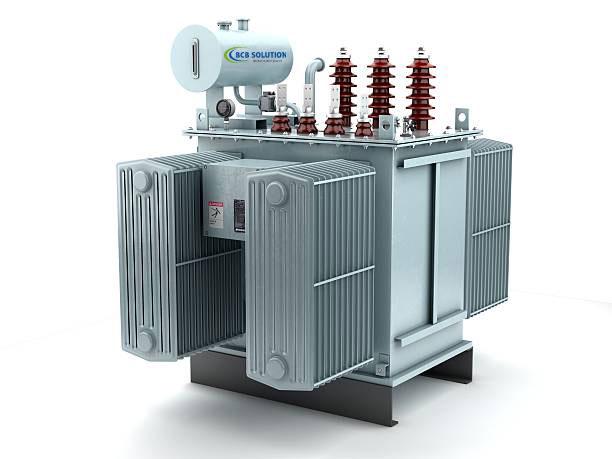

BCB Solution manufactures various types of oil-filled Transformers up to 10000 KVA, 33KV Class range to meet the customer requirements which can be provided with the following type of Tanks:

  • Conventional type
  • Hermetically Sealed with Corrugated Tank type
  • Hermetically Sealed with Radiators type
​

Technical Specifications

Range 100KVA to 10000KVA
Voltage Class Up to 33KV Class
Winding Material Copper or Aluminium
Cooling ONAN/ONAF
Type (Duty) Outdoor / Indoor
Vector Group Dyn1/ Dyn5 / Dyn11 or as per specific requirement
No. of Phase 3 Phase
Tap Changer Off Circuit or On Load Tap Changer
Insulating Oil/Fluid Mineral Oil / Silicon Oil / Ester Oil
Applicable Standards IS 2026, IS 1180, IEC 60076

Key Highlights / Features

  • Shall be provided with Mineral Oil, Silicon Oil or Ester oil depending on the customer requirement
  • Highest Dielectric insulation properties to with Lightening Impulse Surges.
  • Meeting the requirement as per National and International Standards.
  • Optimum oven heating under vacuum to achieve desired compression height & maximum insulation resistance to winding.

Uses and Applications

Cement Industries | Steel Industries | Chemical Industries | Solar Applications (Renewable Energy) | Refineries | Electricity Boards | Infrastructure | Utilities | Railways & Metro | Power Plants


Technical Specifications

Range 100KVA to 10000KVA
Voltage Class Up to 33KV Class
Winding Material Copper or Aluminium
Cooling ONAN/ONAF
Type (Duty) Outdoor / Indoor
Vector Group Dd0yn11 / Dyn11-yn11 or as per specific requiremen
No. of Phase 3 Phase
Tap Changer Off Circuit or On Load Tap Changer
Insulating Oil/Fluid Mineral Oil / Silicon Oil / Ester Oil
Applicable Standards IS 2026, IS 1180, IEC 60076

Key Highlights / Features

  • Specially designed for reduced Harmonic
  • Uses Earthing shield between HV & LV Windings for avoiding transfer of high-frequency transients to HV & LV Side

Uses and Applications

Cement Industries | Steel Industries | Chemical Industries | Solar Applications (Renewable Energy) | Refineries | Electricity Boards | Infrastructure | Utilities | Railways & Metro | Power Plants


Induction Furnace has a coil constructed from heavy copper tubing. It is designed and tuned to the inverter circuit which applies a medium frequency (generally 500 Hz or 1000 Hz) voltage to the Induction coil. The magnetic field produced by the induction coil induces eddy currents in the charge and heats it. Medium frequency is necessary to enhance the rate of heat generation.

Technical Specifications

Range 100KVA to 10000KVA
Voltage Class Up to 33KV Class
Winding Material Copper
Cooling ONAN/OFWF
Type (Duty) Outdoor / Indoor
No. of Phase 3 Phase
Tap Changer Off Circuit or On Load Tap Changer
Insulating Oil/Fluid Mineral Oil / Silicon Oil / Ester Oil
Applicable Standards IS 2026, IS 12977

Key Highlights / Features

  • Induction Furnace applications
  • Provision with OFWF cooling with 100% stand by capacity.
  • Very high current transformers as compared to normal Distribution transformers

Uses and Applications

Rolling Mills | Steel Plants | Metal Industries


Technical Specifications

Range For system Up to 33KV Class
Winding Material Copper
Vector Group ZN0/ZNYN1/ZNYN11
Tap Changer Off Circuit
Applicable Standards IS 2026, IS 1180, IEC 60076

Key Highlights / Features

  • Specially designed transformer with Zigzag Winding.

Uses and Applications

Industrial Sectors | EHV Substations


OIL FILLED TRANSFORMERS

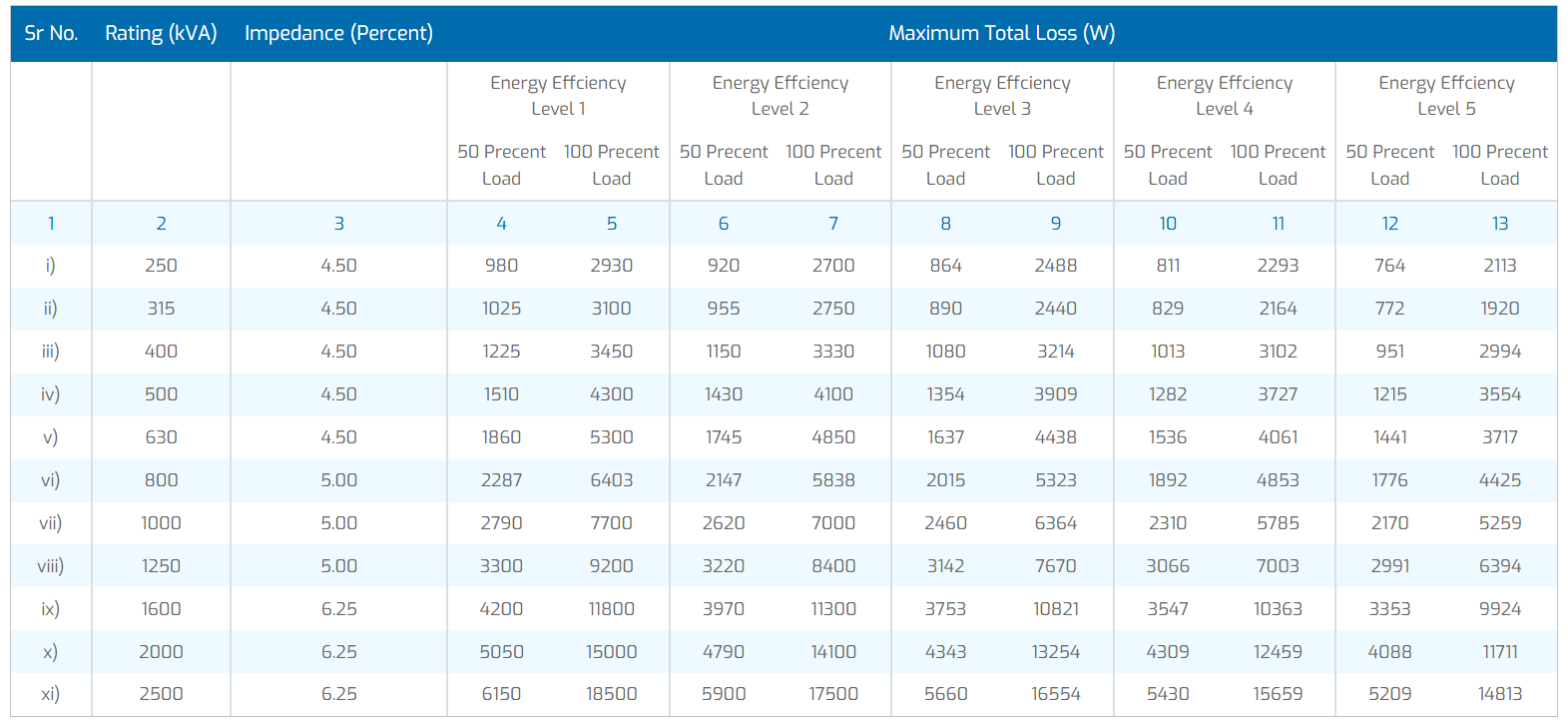

LOSSES AS PER IS-1180: Maximum Total Losses
up to 11KV Voltage Class Transformers


Note

  • For transformers having Voltage class above 11 KV and up to and including 22KV: Total loss values shall not exceed by 5% of the maximum total loss values mentioned in above Table.
  • For transformers having Voltage class above 22 KV and up to and including 33KV: Total loss values shall not exceed by 7½ % of the maximum total loss values mentioned in above Table.
