electrical & automation panel

CPRI APPROVED & IEC-61439 COMPLIED
10 +

Year of Experience

180

Projects Completed

100 %

Client Satisfactions

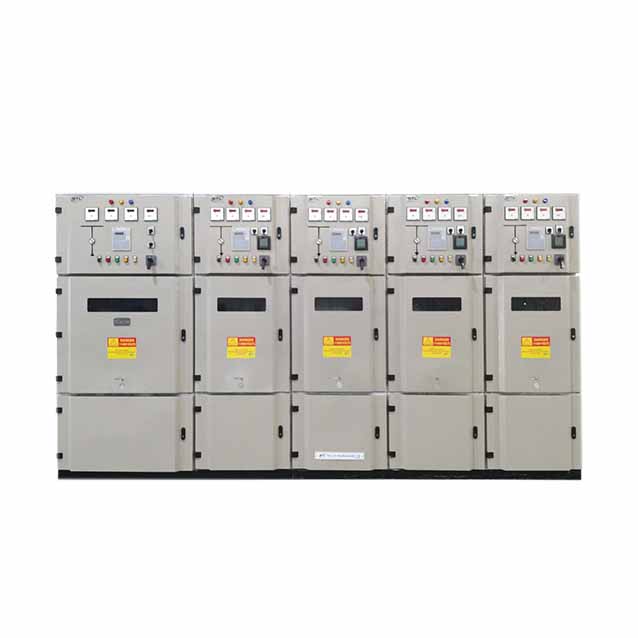

MV-HV PANELS

We are instrumental in offering a wide range of VCB panels, which is suitable for medium, high voltage applications and indoor as well as outdoor installation. These vacuum circuit breaker (VCB) panels are durable and offer excellent performance. These panels are designed for use in 11kv/33kv systems and can be operated manually or with the help of a motor.

We offer a wide range of 11kv VCB Indoor Panel, which delivers excellent performance. In order to prevent fires and power surges, these circuit breakers are used in areas where electric crisis may occur. These circuit breakers find application in medium voltage power system. The different types of Vacuum Circuit Breakers offered by us are




RANGES

  • 6.6kV VCB Indoor Panels
  • 7.5kV VCB Indoor Panel
  • 12 KV VCB Outdoor Roof Bush Panel
  • 11kV Double Bus Bar VCB Panel with dual sequence isolator for each incoming source
  • 11 KV VCB Trolley
  • 22kV Integra Series VCB Panels
  • 33 KV VCB Trolley
  • 36 kV VCB Outdoor Panels
  • Outdoor Panel with TVM Vacuum Circuit Breaker

ADVANTAGES

  • Compact and robust design
  • Easy integration in cubicle
  • High safety, reliability and continuity of service
  • Long durability
  • Low maintenance
  • Low contact transition resistance
  • Up to 10,000 switching operations (M2)
  • Optional: Integrated digital unit

APPLICATIONS

Control and protection of the power supply to motors, transformers, capacitors and other feeder circuits. Designed for indoor / outdoor use and is particularly suitable for

  • Electric power plants
  • Substations
  • Industrial plants
  • Commercial buildings
  • Pumping stations
  • Pipeline stations and
  • Transportation systems.
  • Large infrastructures: Airports, railways, etc.
  • Installation in AIS cubicles
  • Power stations: Wind farms
  • Utilities: Primary distribution substations
  • Industry: Chemical, Iron and steel, automobile, etc.

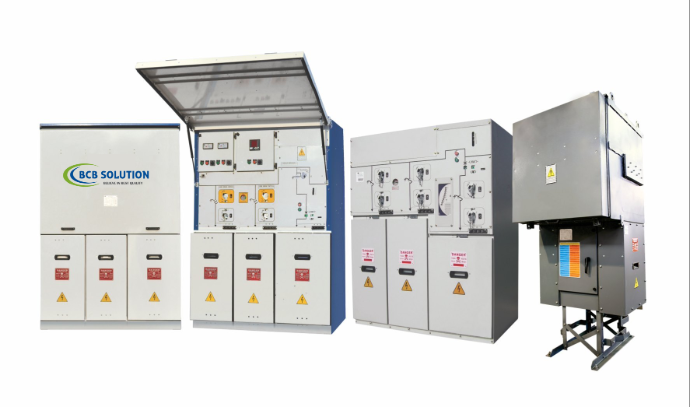

Ring Main Units (RMU)

Our range of Ring Main Units (RMUs) are all suitable for both indoor and outdoor locations and are designed to operate in the most extreme environmental conditions. All of our air, oil and gas insulated ring main units are the result of extensive innovation, using advanced technologies and are subjected to extensive testing and safety standards.

  • Up to 24 kV Side & Rear Cable Entry RMU
  • Up to 24 KV Front Cable Entry RMU
  • Up to 36 kV Front Cable Entry RMU

Product Description

Characterized by their reliability and operational safety, the BCB Solution SF6 insulated ring main unit range includes fully extensible and non-extensible options for secondary distribution applications up to 24 kV.

Featuring the most advanced vacuum switching technology, the units are compact, flexible and easy to operate and install. The Sabre range is fully weatherproof for outdoor use, has a long service life and requires virtually no maintenance in the most extreme conditions.

Technical Details

  • Up to 24 kV and 630 A ratings
  • Compact, extensible and modular range
  • Freestanding and transformer mounted units
  • Easy integration with SCADA network
  • IP54 protection for indoor and outdoor applications
  • Vacuum circuit breaker
  • Side and rear cable access
  • Fully interlocked mechanism with padlocking facilities
  • Motorization for remote control
  • Integral ring cable testing and integral tee-off testing on 630 A models
  • Electronic relays or time limit fuse (TLF) options for protection
  • SF6 load break switch

Product Description

Up to 24KV builds upon the strong RMU heritage and offers a multitude of additional features and benefits. The automation ready units now have integrated Remote Terminal Units (RTUs) in the form of the next-generation Gemini 3, enabling instant smart grid functionality.

Available in 12, 17.5 and 24 kV options with up to 630 A ratings, Aegis Plus has been thoughtfully developed for easy installation, operation and includes a number of additional safety features. These include electrical and mechanical interlocking, as well as AFL/AFLR internal arc ratings. The range can be installed either indoors or outdoors and is available in extensible and non-extensible formats with compatible metering units sold separately.

Technical Details

  • Integrated Gemini 3 RTU
  • Indoor and outdoor applications
  • Front access cable terminations
  • Electrical and mechanical interlocking
  • SF6 insulated
  • Up to 24 kV with 630 A ratings
  • Auto-reclosing circuit breaker
  • Automatic Transfer Scheme (ATS)
  • Motorisation for remote control
  • Time limit fuse (TLF) and relay protection
  • Up to 5 switching functions in a single tank
  • Fully interlocked mechanisms with padlocking facility


  • Uses Earthing shield between HV & LV Windings for avoiding transfer of high-frequency transients to HV & LV Side

Uses and Applications

Cement Industries | Steel Industries | Chemical Industries | Solar Applications (Renewable Energy) | Refineries | Electricity Boards | Infrastructure | Utilities | Railways & Metro | Power Plants


Product Description

Up to 36 is BCB Solution latest product, originating from the very successful RMU product family. It is specially designed for secondary distribution networks, wind farms and photo-voltaic power stations with ratings up to 36 kV. This range is available for both indoor and outdoor environments and offers high levels of reliability and operator safety. It is a compact, cost-effective and virtually maintenance free product.

With up to 630 A ratings, Up to 36 has been developed for easy installation, operation and has a number of additional safety features. These include electrical and mechanical interlocking, a wide range of protection relays, cable, earth and test facility and much more.

Technical Details

  • Economic full life cost
  • Simple and safe installation
  • Compact, suitable for mini-substations
  • Suitable for indoor and outdoor applications
  • 36 kV and 630 A ratings
  • 3 and 4 functions in a single SF6 insulated stainless steel enclosure
  • Vacuum interrupter for circuit breakers
  • Circuit breaker protection using a wide range of self-powered and auxiliary relays
  • Motorisation for remote control
  • Easy integration with SCADA networks
  • Front access cable terminations, with DIN 400 type C bushings
