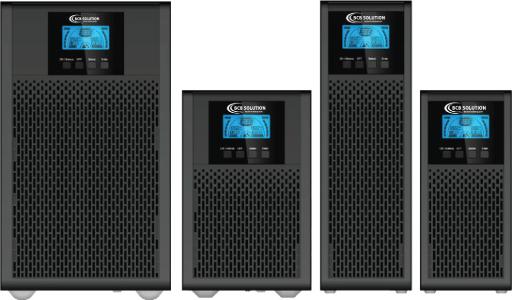

Online UPS-1 Phase

New Online UPS-1 Phase is a true online double conversion UPS system that affordably provides Robust, Reliable, Compact and Efficient Power Management Solution for Mission Critical Application from downtime and data-loss.

  • 1/2/3 kVA
  • 06-10 kVA
  • 15-20kVA
​
1/2/3 kVA

Technical Specifications

  • Power Rating: 1/2/3 kVA Inbuilt Model @ 0.9 PF: 1/2/3 kVA XL Model @ 0.8 PF
  • Configuration: Tower
  • Voltage: 230 Vac.
  • Frequency: 50/60 Hz Auto Sensing
  • Technology: High Frequency, Double Conversion

Product Features & Performance

  • IGBT Based Rectifier True Online Double Conversion
  • Wide Input Voltage window (110 – 275Vac) for Indian Environmental Condition.
  • Double Conversion Efficiency >91% & ECO mode efficiency up to 98% Efficiency upto 95%.
  • 100% load @ 0~40C operating temp.
  • Active Input Power Factor Correction 0.99.
  • O/P power factor 0.9 (O/P power factor 0.8 for long backup model)
  • Inbuilt OVCD (Over Voltage Cut-off device)
  • Fully conform coated PCBA adaptable to harsh environment
  • Offer terminal blocker on 2K/3K rating to connect to big capacity equipment
  • Generator Compatible with Wide Input voltage window
  • Digital Charger Technology provide 0-12 A charging current.
  • Easy understanding LCD for convenient installation setup
  • WINPOWER software support virtualization transfer application Intelligent Monitoring

Key Application

  • Networking and Server Equipment.
  • Wiring Closets.
  • Security and Surveillance System/CCTV and CAMERA.
  • Industrial Automation Control.
  • Laboratory Equipment
  • ATM/Telecom/Railway Signalling

Technical Specifications

  • Power Rating: 06-10 kva @ Unity PF
  • Configuration: Tower
  • Voltage: 230 Vac.
  • Frequency: 50/60 Hz Auto Sensing
  • Technology: High Frequency, Double Conversion

Product Features & Performance

  • IGBT Based Rectifier True Online Double Conversion
  • New Graphical LCD Display.
  • Wide Input Voltage window (110 – 275Vac) for Indian Environmental Condition.
  • Double Conversion Efficiency upto 95%.
  • Active Input Power Factor Correction 0.99.
  • Unity Output Power Factor.
  • Inbuilt OVCD (Over Voltage Cut-off device)
  • Fully conform coated PCBA adaptable to harsh environment.
  • Generator Compatible with Wide Input voltage window
  • Frequency Range (40 Hz-70 Hz).
  • Digital Charger Technology provide 0-12 A charging current.
  • Adjustable Battery no’s 16/17/18/19 and 20.
  • 50/60 Hz Automatic Frequency Converter Mode.
  • 100% load @ 0~40C operating temp.
  • Easy understanding LCD for convenient installation setup
  • WINPOWER software support virtualization transfer application Intelligent Monitoring options.

Key Application

  • Networking and Server Equipment.
  • Bio-Metrics/Radiology and Medical Equipment.
  • Security and Surveillance System/CCTV and CAMERA.
  • Printer/IT-Load and PC’s
  • Lifts and Elevators
  • Lighting Equipment.

Technical Specifications

  • Power Rating: 15-20 kva @ Unity PF
  • Configuration: Tower
  • Voltage: 230 Vac.
  • Frequency: 50/60 Hz Auto Sensing
  • Technology: High Frequency, Double Conversion

Product Features & Performance

  • IGBT Based Rectifier True Online Double Conversion
  • New Graphical LCD Display.
  • Wide Input Voltage window (110 – 275Vac) for Harsh Indian Environmental Condition.
  • Double Conversion Efficiency upto 95%.
  • Active Input Power Factor Correction 0.99.
  • Unity Output Power Factor.
  • Inbuilt OVCD (Over Voltage Cut-off device)
  • Fully conform coated PCBA adaptable to harsh environment.
  • Generator Compatible with Wide Input voltage window
  • Frequency Range (40 Hz-70 Hz).
  • Digital Charger Technology provide 0-12 A charging current.
  • Adjustable Battery no’s 16/17/18/19 and 20.
  • 50/60 Hz Automatic Frequency Converter Mode.
  • 100% load @ 0~40C operating temp.
  • WINPOWER software support virtualization transfer
    application Intelligent Monitoring options.

Key Application

  • Networking and Server Equipment.
  • Bio-Metrics/Radiology and Medical Equipment.
  • Security and Surveillance System/CCTV and CAMERA.
  • Automation and Control Panels.
  • Printer/IT-Load and PC’s
  • Lifts and Elevators.
  • Lighting Equipment
